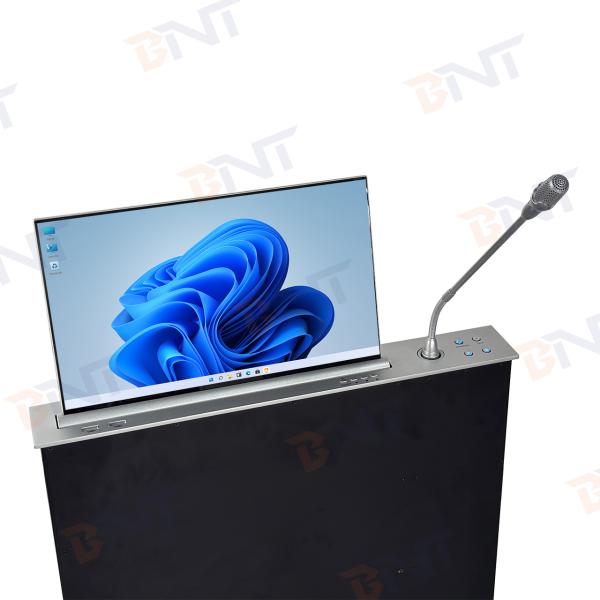

BNT Full HD Screen Low Price Motorized Retractable Monitor Lift With Mic for Conference System

Name: BNT Full HD Screen Low Price Motorized Retractable Monitor Lift With Mic for Conference System
Brand: Boente
Price: 1 USD

Quality BNT Full HD Screen Low Price Motorized Retractable Monitor Lift With Mic for Conference System for sale

Type : Audio Conference System, Network Conference System, Video Conference System

Function : Presentation

Simultaneous Interpretation : NO

Place of Origin : Guangdong, China

Brand Name : Boente

Model Number : AML-15.6JM

Product Name : led screen lift

Material : Full aluminum alloy

screen frame : 6mm Ultra narrow screen frame

Monitor : 15.6 inch screen

Panel Size : 542*73*5mm

Product size : 542*73*510mm

Adjust Angle : default 15 °

Resolution : 1920*1080 (16:9)

Interface : H-DMI+USB+RS232 I/O

Protection System : With Anti-pinch Hand Protect

Contact Now

BNT Full HD Screen Low Price Motorized Retractable Monitor Lift With Mic for Conference System

Product Introduction:

Compared to the previous generation ultra-thin LCD screen lifter, it is more intelligent, aesthetically pleasing, and lightweight.

When holding a regular meeting, the LCD monitor can be hidden inside the meeting desktop, making the desktop flat and simple; When holding multimedia conferences, the LCD screen can be raised individually, in groups, or all according to different needs for displaying multimedia information, including conference content, information prompts, image information, etc. It is an important component of modern paperless technology.

Product Technical Parameters
Product name	Ultra thin LCD display lifter
Screen size	15.6-inch LCD screen
High definition screen	Full lamination process
resolution	1920*1080
Screen ratio	16：9
product material	Aluminum alloy
video interface	1 VGA input, 1 HDMI input
control interface	1 touch interface, 2 data transmission USB interfaces, 3 RS48 interfaces
Screen Brightness	300cd/㎡
viewing angle	85/85/85/85(Typ)。
Display thickness	8MM
Input power supply	~220V/50Hz
power consumption	25W
Panel size	542mm73mm5mm
Chassis size	530mm65mm*505mm
Product size	542mm73mm510mm
Desktop opening size	535mm * 68mm (recommended physical hole opening)
Panel sink size	544mm75mm5mm (recommended physical hole opening)

1. Automatic door silent design, stable performance;

2. The perfect combination of touch buttons and aluminum alloy panel is noble and elegant;

3. The high-end button design will switch up, down, and stop on the same panel for easy operation.

4. Equipped with VGA and HDMI signal interfaces, it can be used independently at will;

5. Using professional wire protection chain firmware, when opening the chassis, there is no visible horizontal wiring, making it neat and beautiful;

6. Using high-precision synchronous motor operation, it can lift and lower freely, and the flip door automatically opens and closes with precision and reliability;

7. Ultra thin multimedia terminal with aluminum alloy screen shell; 8. TFT fully laminated ultra-thin and ultra narrow bezel high-definition LCD screen with a tempered glass touch capacitor screen on the surface, which is beautiful and practical, and can view all the content of the screen in high definition without adjusting the angle;

9. The color of the machine panel and screen casing is bright silver or other colors;

10. The material of the elevator panel adopts a pure aluminum alloy structure, and the material used is formed aluminum mold high-temperature die-casting, which is then hardened for 24 hours. After precision machining and integrated molding.

11. When it rises to the designated position, the LCD screen automatically turns on, and when it descends to the designated position, the LCD screen automatically shuts off;

12. Adopting the most advanced synchronous belt transmission architecture, reducing the noise caused by gear interlocking, with two precision sliding rails and built-in high-performance bearings, it is quiet, smooth and noise free. Ultra quiet slide rail, lifting noise less than 20 decibels;

13. Ultra quiet slide rail, lifting noise less than 20 decibels;

14. Can be connected to the control keyboard or central control system through RS485 bus; Realize remote control and centralized management of lifting and stopping;

15. All support manual control, wireless remote control, centralized control, and RS485 (network interface) centralized control;

16. Adopting wireless induction switch, with reasonable travel, precise positioning, and super stability;

Ultra-light design, all aluminum alloy (including the bottom box, including all the parts inside)

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel)

The ultra-thin series LCD screen electric elevator is mainly used in various high-end conference halls, trading halls, advanced multimedia network systems, paperless conference systems, monitoring systems, query systems, high-end office spaces, etc. Widely used in various industries such as government, postal and telecommunications, transportation, aerospace, banking, railway, water conservancy, electricity, securities, flood control, petroleum, chemical, finance, schools, hospitals, and enterprises.

We can also use this monitor lift device in schools.

Product packaging style

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.

→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.

→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
